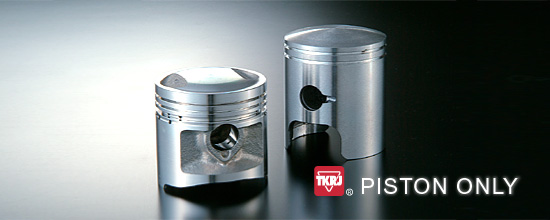

PISTON ONLY

- MOTORCYCLE -

PISTON ONLY, producted by TKRJ persuing for durability.

The ＴＫＲＪ piston can endure harsh, changing conditions without difficulty.
These have earned a reputation for quality and especially durability from users all over the world.

PISTON ONLY for HONDA(MOTORCYCLE) PRODUCT LINE-UP

Note1

We can supply the following size piston : STD - 1.00.
However, if you request a larger size, we could meet your needs up to 2.00.
Sizes over 1.00 would take more time than usual for production and shipment.

Note2

Our piston code numbers change as following.

STD	: PHXXX0X	1.25	: PHXXX5X
0.25	: PHXXX1X	1.50	: PHXXX6X
0.50	: PHXXX2X	1.75	: PHXXX7X
0.75	: PHXXX3X	2.00	: PHXXX8X
1.00	: PHXXX4X

MODEL	OEM	CODE No.	BORE (mm)	STROKE	REMARKS
C-50/CF-50/C-50Z2	13101-036-010	PH0010X	39	4
C-50B/C-50C	13101-GB2-010	PH0020X	39	4
CB-50J	13101-149-010	PH0030X	42	4
ELITE-50/NE-50/SA-50M	13101-GS7-000	PH0040X	41	2
GLX-50/C-50D,E,G/CA-50	13101-GK4-760	PH0050X	39	4
MB-50/MT-50	13101-166-000	PH0060X	39	2
NC-50	13101-147-000	PH0070X	40	2
NH-50/LEAD-50	13101-GC7-000	PH0080X	40	2
PC-50/PC-50C	13101-081-000	PH0090X	42	4
DJ-1/TACT-50	13101-GN2-870	PH0100X	41	2	RING:GN7671
DIO/SK-50/SK-50M/SZ-50M	13101-GAH-780	PH0110X	39	2	RING:GWO306/308
DJ-1/TACT-50	13101-GN2-305	PH0120X	41	2	RING:GR1013/GS7305
MBX-50/MTX-50/NS-1	13101-GE2-000	PH0130X	39	2
DIO/SK-50/SK-50M/SZ-50M	13101-GAH-720	PH0150X	39	2	RING:GWO307
DIOSR	13101-GBL-010	PH0160X	39	2
C-70 OLD	13101-087-000	PH0200X	47	4
C-700/C-70Z3/C-70C	13101-GBO-910	PH0210X	47	4
C-70C/ST-70	13101-126-750	PH0220X	47	4
C-70C/C-90C/C-70G	13101-GB5-760	PH0230X	47	4
C-70 NEW/C-70Z2/C-70K2/C-75	13101-087-712	PH0240X	47	4
ELITE-80/CH-80/CE-80	13101-GE1-830	PH0300X	49.5	4
NH-80/LEAD-80	13101-GC8-000	PH0310X	48	2
C-90/CS-90/CT-90	13101-028-070	PH0400X	50	4
C-86Z/C-900	13101-GB1-900	PH0410X	47	4
C-90IID/FAME	13101-GB6-911	PH0420X	47	4
C-90E	13101-GB6-760	PH0430X	47	4
C-90CWR/CD-90H	13101-GTO-000	PH0440X	47	4
CD-90	13101-178-000	PH0450X	47	4
C-90CWR II	13101-GTO-680	PH0460X	47	4	STD:GTO680 O/S:GTO306
MD-90H	13101-121-960	PH0470X	50	4
C-100E/CD-100/DREAM	13101-GF6-010	PH0500X	50	4
C-100M/C-100EX	13101-GN5-912	PH0510X	50	4
CB-100	13101-107-760	PH0520X	50.5	4
CB-100N/CB-100K3	13101-384-000	PH0530X	50.5	4
CT-100	13101-439-000	PH0540X	52	4
MB-100/H-100S	13101-168-000	PH0550X	50.5	2
TMX	13101-KB5-000	PH0560X	58.5	4
XL-100S	13101-436-000	PH0570X	53	4
C-100 SPRENDOR	13101-KCC-900	PH0580X	50	4
CB-100K2	13101-107-710	PH0590X	50.5	4
ACTIVA100	13101-KRP-980	PH0600X	50	4
CG-110	13101-398-000	PH0650X	52	4
S-110	13101-350-010	PH0660X	52	4
S-110 NEW/S-110 DX	13101-350-020	PH0670X	52	4
WAVE-110	13101-KFL-850	PH0680X	50	4
SONIC-120	13101-KGH-900	PH0690X	58	4
CB-125S2	13101-324-680	PH0710X	56.5	4
CB-125T/CD-125T	13101-399-010	PH0720X	44	4
CG-125 OLD	13101-383-000	PH0730X	56.5	4
CG-125 NEW	13101-383-010	PH0740X	56.5	4
CG-125 TODAY	13101-KYO-890	PH0750X	56.5	4
GL-125/XR-125R	13101-440-000	PH0760X	56.5	4
XL-125S	13101-437-000	PH0800X	56.5	4
CG-125 TITAN	13101-KGA-900	PH0810X	56.5	4
WAVE-125	13101-KPH-000	PH0820X	52.4	4
CG-125 TITAN 2002	13101-KGA-BOO	PH0830X	56.5	4
E-STORM	13101-KVC-900	PH0840X	56.5	4
HX-135	13101-KM7-700	PH0850X	58	2
GL-145/GL-PRO	13101-KG2-000	PH0880X	61	4
ELITE-150	13101-KN7-000	PH0900X	58	4
NSR-150	13101-KW6-000	PH0910X	59	2
NX-150	13101-KW1-000	PH0920X	62.5	4
CG-150	13101-KRM-930	PH0930X	57.5	4
CBZ	13101-KFN-851	PH0940X	63.5	4
CD-175	13101-313-010	PH0950X	52	4
CG150 CHINA	-KG9-	PH0960X	62	4
CD-185	13101-418-000	PH0980X	53	4
XL-185S	13101-427-000	PH0990X	63	4
CD-195/CD-200	13101-464-000	PH1030X	53	4
KX-200/CBX-200	13101-KBB-901	PH1040X	63.5	4
XL-200R/XL-125R/XL-200	13101-446-770	PH1050X	65.5	4
CB200 FORTTE		PH1060X	63	4
MEGA PLO	13101-KEH-660	PH1070X	63.5	4
CB-250S	13101-471-003	PH1100X	74	4	same as: 13101-428-013
ELITE-250	13101-KS4-003	PH1110X	72	4
XL-250S	13101-428-013	PH1120X	74	4
XR-250R	13101-KT1-013	PH1130X	73	4
XR-250	13101-KV6-013	PH1140X	73	4
XLR-250RF	13101-KR6-003	PH1150X	75	4
CB-250M	13101-KR3-013	PH1160X	53	4
XR250 TORNAD	13101-KPF-013	PH1170X	73	4
CB-400F	13101-377-700	PH1200X	51	4
CBX-400F	13101-MA6-000	PH1210X	55	4
XR-600	13101-MN1-680	PH1300X	97	4
CR-480	13101-KA5-691	PH1500X	89	2
NH-90	13101-GW3-020	PH1600X	48	2
C-100M/C-100EX	13101-GN5-325	PHS510X	50	4	Z RING PISTON
WAVE-125	13101-KPH-900	PHS820X	52.4	4	Z RING PISTON

Top of page

PISTON ONLY for YAMAHA(MOTORCYCLE) PRODUCT LINE-UP

Note1

Note2

Our piston code numbers change as following.

STD	: PYXXX0X	1.25	: PYXXX5X
0.25	: PYXXX1X	1.50	: PYXXX6X
0.50	: PYXXX2X	1.75	: PYXXX7X
0.75	: PYXXX3X	2.00	: PYXXX8X
1.00	: PYXXX4X

MODEL	OEM	CODE No.	BORE (mm)	STROKE	REMARKS
CE-50	27V-11631-00	PY0010X	40	2
NEW JOG/CG-50	2JA-11631-00	PY0020X	40	2
CN-50E	4K5-11631-00	PY0030X	40	2
CV-50E	5G6-11631-00	PY0040X	40	2
DT-50/RD-50	353-11631-01	PY0050X	40	2
JOG-50	3CP-11631-00	PY0060X	40	2
MA-50	18U-11631-00	PY0070X	40	2
PASSOL/PW-50	2E9-11631-00	PY0080X	40	2
PASSOLA/MINT/SH-50ED	1YU-11631-00	PY0090X	40	2
TOWNY/MJ-50	4J2-11631-00	PY0100X	40	2
T-50	22F-11631-00	PY0110X	39	4
DT-50LC/RD-50LC	5R2-11631-00	PY0120X	40	2
TREE-WELL	36R-11631-00	PY0130X	44	2	KOREAN MODEL
YAS-1	183-11631-03	PY0140X	43	2
V-50/YB-50/FS-1	109-11631-02	PY0150X	40	2
YB-50 NEW	3E1-11631-00	PY0160X	40	2
YB-80/YG-1F/FS-80	122-11613-01	PY0170X	47	2
CV-80/BELUGA-80	5G3-11631-00	PY0300X	49	2
LB-80/GT-80	367-11631-00	PY0310X	47	2
T-80	22K-11631-00	PY0330X	47	4
Y-80/V-80/FS-80	3E5-11631-00	PY0340X	47	2
Y-80U	5TO-11631-00	PY0350X	47	2
YB-80	180-11631-00	PY0360X	47	2
YB-80 NEW/V-75	298-11631-00	PY0370X	47	2
YA-90 AXIS	3WF-11631-00	PY0450X	50	2
V-90	2JG-11631-00	PY0460X	50	2	RING:2VT
DT-100/DT-100X	558-11631-00	PY0500X	52	2
DT-100K	23F-11631-00	PY0510X	52	2
LS-3	382-11631-01	PY0530X	52	2
RS-100/AG-100	463-11631-01	PY0540X	52	2
RX-100/AG-100N	1V1-11631-00	PY0550X	52	2
Y-100	2JG-11631-00	PY0560X	50	2
YB-100	359-11631-01	PY0570X	52	2
YB-100 NEW	359-11631-02	PY0580X	52	2
YB100 10R/YB100-19V/DX100	2N3-11631-02	PY0590X	52	2
YB100 10R/YB100-19V/DX100	5E2-11631-00	PY0600X	52	2
YL-2GF	166-11631-11	PY0610X	52	2
RX-100 INDIA	36L-E1631-00	PY0620X	50	2
CRYPTON/SRE-110	4ST-E1631-00	PY0650X	49	4
NOUVO/MIO	5LW-E1631-00	PY0680X	50	4
Y-110	3YR-11631-00	PY0700X	52	2
RX-S/RX-115/YT-115	4X8-11631-00	PY0750X	54	2
FRESH	4YS-E1631-00	PY0760X	49	4
JUPITER Z	5TN-E1631-00	PY0780X	51	4
DT-125A/DT-125FB	444-11631-00	PY0810X	56	2
DT-125E	2A6-11631-00	PY0820X	56	2
DT-125K	18G-11631-00	PY0830X	56	2
DT-125LC	10V-11631-00	PY0840X	56	2
RD-125	466-11631-01	PY0850X	43	2
RD-125LC	10W-11631-00	PY0860X	56	2
RS-125	479-11631-03	PY0870X	56	2
RX-125	1VO-11631-00	PY0880X	56	2
RX-125	3M5-11631-00	PY0890X	56	2
TZR-125	2RH-11631-00	PY0900X	56.4	2
YAS-3	307-11631-00	PY0910X	43	2
YB-125/YA-6	137/372-11631-30	PY0920X	56	2
DT-125K1	18G-11631-01	PY0930X	56	2	RING:3TL
SR-125	25A-11631-00	PY0940X	57	4
YBR-125	4LS-11631-00	PY0950X	54	4
Y-125Z	5BU-11631-00	PY0960X	53.8	2
TDR250/R1-Z	2YK-11631-00	PY0970X	56.4	2
EGO LC125	33S-E1631-00	PY0980X	52.4	4
RX-K/RX-135	4Y2-11631-00	PY1000X	58	2
RX-Z/RXZ-135/RX-135Z	55G-11631-00	PY1010X	56	2
135LC	5YP-E1631-00	PY1020X	54	4
RXZ-135 NEW	5PV-11631-00	PY1030X	56	2
NOUVO-LC	5PO-E1631-00	PY1040X	54	4
TZR-150	3RR-11631-00	PY1060X	59	2
VR-150	2JK-11631-00	PY1070X	59	2
BWS-100	4VP-E1631-A0	PY1080X	52	2
FZ150 I	3C1-E1603-00	PY1090X	57	4
DT-175/DT-175B	443-11631-11	PY1110X	66	2
DT-175E	2A7-11631-00	PY1120X	66	2
DT-175K	18L-11631-00	PY1130X	66	2
XT-225	1KH-11631-00	PY1160X	70	4
RD-250LC	4L1-11631-00	PY1200X	54	2
MAJESTY/YP250	4HC-11631-00	PY1210X	69	4
RZ-250R	29L-11631-02	PY1220X	54	2
RD-350LC	4LO-11631-00	PY1250X	64	2
RD-350YPVS	31K-11631-00	PY1260X	64	2
XT-600E	3TB-11631-00	PY1400X	95	4
XS-650	447-11631-00	PY1500X	75	4
XS1	256-11631-02	PY1510X	75	4
JUPITER Z	5TN-E1631-00	PYS780X	51	4	Z RING PISTON

Top of page

PISTON ONLY for SUZUKI(MOTORCYCLE) PRODUCT LINE-UP

Note1

Note2

Our piston code numbers change as following.

STD	: PSXXX0X	1.25	: PSXXX5X
0.25	: PSXXX1X	1.50	: PSXXX6X
0.50	: PSXXX2X	1.75	: PSXXX7X
0.75	: PSXXX3X	2.00	: PSXXX8X
1.00	: PSXXX4X

MODEL	OEM	CODE No.	BORE (mm)	STROKE	REMARKS
A-50/K-50/TS-50/FZ-50	12110-46103	PS0010X	41	2
AD-50/AD-50M/AE-50	12110-40D10	PS0030X	41	2
AP-50/A-50 OLD	12110-35000	PS0040X	41	2
CK-50/CX-50/CARNA	12110-03A02	PS0050X	41	2
FB-50 I	12110-09407	PS0060X	39	4	TYPE I RING:09410
FR-50	12110-35613	PS0070X	41	2
FB-50 II	12110-09450	PS0080X	39	4	TYPE II RING:09440
AD-60/AD-60M/AE-60	12110-29C10	PS0150X	42	2
A-80	12110-26101	PS0160X	47	2
DS-80	12110-46402	PS0170X	49	2
FB-80	12110-02A03	PS0180X	48	4
FR-80 OLD	12110-25603	PS0190X	49	2
FR-80	12110-35623	PS0200X	49	2
RC-80	12110-35407	PS0210X	47	2
K-90	12110-23003	PS0260X	50	2
A-100 OLD	12110-12000	PS0300X	50	2
A-100 NEW	12110-12002	PS0310X	50	2
AX-100/AX-100D	12110-23401	PS0320X	50	2
FB-100	12110-30A01	PS0330X	51	4
GP-100	12110-39213	PS0340X	50	2
GT-100	12110-39000	PS0350X	49	2
RC-100	12110-35503	PS0360X	52.5	2	same as: AG-100
TR-S	12110-39034	PS0370X	55	2
TS-100/TS-100ER	12110-48101	PS0380X	50	2
FR-100V	12110-35630	PS0390X	51	2
AG-100	12110-41D10	PS0400X	52.5	2
AX-110S(INDAI)/AX-115S	12110-23450	PS0500X	52.5	2
RC-110	12110-31C00	PS0510X	54	2
RU-110	12110-21810/21D10	PS0520X	54	2
FD-110T	12110-30D03	PS0530X	53.5	4
SMASH	12110-09G10	PS0540X	53.5	4
B-120	12110-20200	PS0600X	52	2
GS-125/GN-125X/DR-125	12110-05202	PS0630X	57	4
GP-125	12110-39102	PS0650X	56	2
GT-125	12110-36207	PS0660X	43	2
K-125	12110-08401	PS0680X	54	2
RG-125	12110-36A06	PS0700X	54	2
TS-125ERZ	12110-48700	PS0710X	56	2
TS-125/TS-125ER	12110-48001	PS0720X	56	2
TS-125X	12110-01A03	PS0730X	56	2
TR-Z	12110-39502	PS0740X	55	2
BEST-125/FD-125	12110-20G00	PS0750X	53.5	4
EN-125	12110-12F50	PS0760X	57	4
SHOGUN 125	12110-20G30	PS0770X	53.5	4
RG-V/TX-150	12110-12B05	PS0800X	59	2
FU150 SCD	12111-25G00	PS0810X	62	4
TS-185ER	12110-29900	PS0850X	64	2
B-200X5	12110-10203	PS0900X	50	2
DR-200E	12110-42A03	PS0910X	66	4
GT-250X7	12110-11300	PS0950X	54	2
TS-250ER	12110-30510	PS0960X	70	2
DR-350	12110-14D03	PS1000X	79	4

Top of page

PISTON ONLY for KAWASAKI(MOTORCYCLE) PRODUCT LINE-UP

Note1

Note2

Our piston code numbers change as following.

STD	: PKXXX0X	1.25	: PKXXX5X
0.25	: PKXXX1X	1.50	: PKXXX6X
0.50	: PKXXX2X	1.75	: PKXXX7X
0.75	: PKXXX3X	2.00	: PKXXX8X
1.00	: PKXXX4X

MODEL	OEM	CODE No.	BORE (mm)	STROKE	REMARKS
AR-80	13001-1281	PK0010X	48	2
AR-80A/AR-80H	13001-1326	PK0020X	49	2
AR-80K1	13001-1353	PK0040X	47	2
AN-80/JOY	13001-1084	PK0050X	51	4
KX-60	13001-1080	PK0060X	43	2
AN-80 NEW	13001-1302	PK0070X	51	4
KX-80M-1	13001-1497	PK0080X	47	2
AX-1/AN-80/AMX,MAX-100/BAJAJ BOXER	13001-1218	PK0100X	53	4
BR-100	13001-1292	PK0110X	50	4
AM-105/COSMO	13001-1291	PK0120X	52.5	4
G-7T/KE,KH-100	13001-057	PK0130X	49.5	2
KH-100	13001-1065	PK0140X	49.5	2
KX-100	13001-1275	PK0150X	52.5	4
KB-100-4S		PK0160X	50	4
KAZE-R	13001-1420	PK0180X	53	4
AN-110/KRISS	13001-1422	PK0190X	53	4
AS-110	13001-5063	PK0200X	53	4
GTO-110/KH-110	13001-1067	PK0210X	52	2
KAZE-112	13001-1512	PK0220X	53	4
AH-115A1/KH-115A1	13001-1418	PK0230X	55	2
AS-120	13001-1426	PK0250X	54	4
B-1L/KC-125	13001-008	PK0320X	55	2
GTO-125/KH-125D	13001-1061	PK0330X	55	2
KE-125A/KH-125A	13001-1091	PK0340X	56	2
KMX-125A	13001-1235	PK0350X	54	2
WINO-125	13340-0001	PK0360X	54	4
GT-X/AR-140B	13001-1243	PK0400X	58	2
KG-150	13001-1399	PK0450X	59	2
KR-150	13001-1352	PK0460X	59	2
KR-150K1	13001-0053	PK0470X	59	2
KLX-150	13001-0104	PK0480X	58	4
KE-175B-1	13001-074	PK0500X	61.5	2
KE-175D	13001-1041	PK0510X	62.5	2
KDX-200	13001-1317	PK0600X	66	2
NINJA / ZZR250	13001-1325	PK0750X	62	4

Top of page

PISTON ONLY for OTHERS(MOTORCYCLE) PRODUCT LINE-UP

Note1

Note2

Our piston code numbers change as following.

STD	: PZXXX0X	1.25	: PZXXX5X
0.25	: PZXXX1X	1.50	: PZXXX6X
0.50	: PZXXX2X	1.75	: PZXXX7X
0.75	: PZXXX3X	2.00	: PZXXX8X
1.00	: PZXXX4X

MODEL	OEM	CODE No.	BORE (mm)	STROKE	REMARKS
TVS VICTOR		PZ0020X	51	4	INDIA MODEL
ZS/WG/C110		PZ0070X	52.4	4
BAJAJ DISCOVER 100	JB-5212-00	PZ0080X	47	4	INDIA MODEL
X-CITE/AN130	-0074	PZ0090X	53	4
BAJAJ PULSAR-150		PZ0100X	57.0	4	INDIA MODEL
BAJAJ PULSAR-180	DJ-1011-58	PZ0110X	63.5	4	INDIA MODEL
BAJA DISCOVER 135	JF-5212-00	PZ0120X	58	4	INDIA MODEL
BAJAJ XCD-125	JA-5212-10	PZ0130X	54	4	INDIA MODEL
BAJAJ PULSAR-135	PZ0140X	PZ0140X	54	4	INDIA MODEL
