ENGINE VALVE |
-
MOTORCYCLE - |
||||||||||||||||
 |
|||||||||||||||||||
|
 |
ENGINE VALVE, having potential on strength. |
|

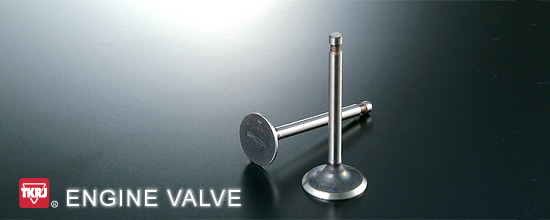

The TKRJ engine valve is very high precision to the micrometer level. It produces its potential on strength,resistance to wear, resistance to corrosion and resistance to oxidation. The intake valve controls mixed gas flow into the cylinder, the exhaust valve controls flow of hot gas which is produced in the cylinder. |
|
ENGINE VALVE for HONDA(MOTORCYCLE) PRODUCT LINE-UP |
|
MODEL | OEM | CODE No. | TYPE | MATERIAL | REMARKS |
| | C-50 | 14711-036-000 | YH0010A | IN | SUH3 | Same as 051000 |
| | CB-50JX | 14711-115-000 | YH0020A | IN | SUH3 | |
| | C-50C | 14711-GK4-013 | YH0030A | IN | SUH3 | Carbon cutter GB2-000 |
| | C-50C | 14711-GK4-601 | YH0031A | IN | SUH3 | |
| | PC-50 | 14711-081-010 | YH0040A | IN | SUH3 | |
| | C-70 | 14711-087-000 | YH0080A | IN | SUH3/35 | 087-010/089-000/035-000 |
| | CD-90A | 14711-087-710 | YH0090A | IN | SUH3 | |
| | C-50C | 14711-GB2-000 | YH0100A | IN | SUH3 | |
| | C-70C | 14711-GB4-681 | YH0110A | IN | SUH3 | |
| | CS-90 | 14711-028-000 | YH0150A | IN | SUH3/35 | |
| | MD-90H | 14711-121-640 | YH0160A | IN | SUH3 | |
| | CD-100 | 14711-GN5-913 | YH0200A | IN | SUH3 | |
| | CB-100 | 14711-107-020 | YH0210A | IN | SUH3/35 | 107-010 |
 | ACTIVA | 14711-GCC-000 | YH0230A | IN | SUH3 | |
| | S-110 | 14711-235-000 | YH0250A | IN | SUH3 | 350-000 |
| | CT-110/ATC-110 | 14711-459-000 | YH0260A | IN | SUH3 | |
| | CG-125 | 14711-383-000 | YH0300A | IN | SUH3/35 | |
| | TMX-K3 | 14711-383-660 | YH0301A | IN | SUH3 | |
| | CD-125T | 14711-399-000 | YH0310A | IN | SUH3 | 116-000/418-000 |
| | XL-100S | 14711-152-000 | YH0311A | IN | SUH3 | |
| | TITAN 2000 | 14711-KCS-650 | YH0330A | IN | SUH3 | Same as KYO980 |
| | CG125 TODAY | 14711-KYO-890 | YH0340A | IN | SUH3 | |
| | TITAN 2002 | 14711-KGA-BOO | YH0345A | IN | SUH3 | |
| | XL-185S | 14711-437-000 | YH0350A | IN | SUH3 | Same as 440000/437-003 |
| | WAVE-125 | 14711-KPH-000 | YH0355A | IN | SUH3 | Same as KSS900 Carbon Cutter |
| | WAVE-125 | 14711-KFM-000 | YH0356A | IN | SUH3 | Carbon Cutter |
| | CBX-125F | 14711-KK6-000 | YH0360A | IN | SUH3 | |
| | CH-125C/150 | 14711-KJ9-000 | YH0365A | IN | SUH3 | |
| | CD-125K5 | 14711-230-010 | YH0370A | IN | SUH3 | 230-000 |
| | GL-125 | 14711-KC6-950 | YH0380A | IN | SUH3 | |
| | GL-145 | 14711-KG2-000 | YH0390A | IN | SUH3 | |
| | NX-150 | 14711-KW1-900 | YH0395A | IN | SUH3 | |
| | CG-150 | 14711-KRM-840 | YH0397A | IN | SUH3 | |
| | NX-200/CBX-200 | 14711-KBB-900 | YH0400A | IN | SUH3/35 | |
| | CB-250T | 14711-414-000 | YH0500A | IN | SUH3 | |
| | XL-250S | 14711-428-000 | YH0510A | IN | SUH3/35 | |
| | XLX-250R | 14711-KGO-000 | YH0520A | IN | SUH3/35 | |
| | XR-250RF/RH | 14711-KK1-000 | YH0530A | IN | SUH3 | |
| | XR-250 TORNADO | 14711-KPF-900 | YH0550A | IN | SUH35 | |
| | TRX-250 | 14711-HM8-A40 | YH0560A | IN | SUH3 | |
| | XR-350 | 14711-KFO-000 | YH0600A | IN | SUH3/35 | KL3-670 |
| | CB-400T | 14711-413-000 | YH0700A | IN | SUH3 | |
| | XR-500 | 14711-MG3-000 | YH0800A | IN | SUH3 | |
| | XR-250/XR-600 | 14711-KCZ-000 | YH0900A | IN | SUH3 | |
| | CB-600 | 14711-MAL-600 | YH0910A | IN | SUH3 | |
| | C-50 | 14721-036-000 | YH1010A | EX | SUH3/35 | Same as 051000 |
| | CB-50JX | 14721-115-000 | YH1020A | EX | SUH3 | |
| | C-50C | 14721-GK4-601 | YH1030A | EX | SUH3 | Carbon cutter GK4-600 |
| | C-50C | 14721-GK4-600 | YH1031A | EX | SUH3 | |
| | PC-50 | 14721-081-010 | YH1040A | EX | SUH3/35 | |
| | C-70 | 14721-087-000 | YH1080A | EX | SUH3/35 | 035-000/087-010/089-000 |
| | CD-90A | 14721-087-710 | YH1090A | EX | SUH3/35 | |
| | C-50C | 14721-GB2-000 | YH1100A | EX | SUH3 | |
| | C-70C | 14721-GB5-761 | YH1110A | EX | SUH3 | GEO-003 |
| | CS-90 | 14721-028-000 | YH1150A | EX | SUH3/35 | 028-800/028-602/028-790 |
| | MD-90H | 14721-121-640 | YH1160A | EX | SUH3 | |
| | CD-100 | 14721-GN5-000 | YH1200A | EX | SUH3 | GN5-910 |
| | CB-100 | 14721-107-020 | YH1210A | EX | SUH3/35 | Same as 324010/324005/324000 |
| | C-100BIZ | 14721-GF6-010 | YH1220A | EX | SUH3/35 | Carbon cutter |
| | C-100BIZ | 14721-GF6-000 | YH1221A | EX | SUH3/35 | |
| | ACTIVA | 14721-GCC-000 | YH1230A | EX | SUH3 | |
| | S-110 | 14721-235-000 | YH1250A | EX | SUH3 | 302-000/302-010/350-000 |
| | CT-110/ATC-110 | 14721-459-000 | YH1260A | EX | SUH3/35 | |
| | CG-125 | 14721-383-000 | YH1300A | EX | SUH3/35 | |
| | CD-125T | 14721-116-000 | YH1310A | EX | SUH3 | 178-000/418-000 |
| | TITAN 2000 | 14721-KCS-650 | YH1330A | EX | SUH3/35 | Same as KYO980 |
| | CG125 TODAY | 14721-KYO-890 | YH1340A | EX | SUH3/35 | |
| | TITAN 2002 | 14721-KGA-BOO | YH1345A | EX | SUH3/35 | |
| | XL-185S | 14721-437-000 | YH1350A | EX | SUH3/35 | 437-003 |
| | WAVE-125 | 14721-KPH-900 | YH1355A | EX | SUH3/35 | Same as KSS900 Carbon Cutter |
| | CBX-125F | 14721-KK6-000 | YH1360A | EX | SUH3 | |
| | CH-125C/150 | 14721-KV7-900 | YH1365A | EX | SUH3 | Same as KN7670/970 |
| | CD-125K5 | 14721-304-000 | YH1370A | EX | SUH3 | 230-000/230-010/303-000 |
| | GL-125 | 14721-KC6-950 | YH1380A | EX | SUH3/35 | |
| | GL-145 | 14721-KG2-000 | YH1390A | EX | SUH3 | |
| | NX-150 | 14721-KW1-900 | YH1395A | EX | SUH3 | |
| | CG-150 | 14721-KRM-840 | YH1397A | EX | SUH3 | |
| | NX-200/CBX-200 | 14721-KBB-900 | YH1400A | EX | SUH3/35 | |
| | CB-250T | 14721-414-000 | YH1500A | EX | SUH3 | |
| | XL-250S | 14721-428-000 | YH1510A | EX | SUH3/35 | 471-000 |
| | XLX-250R | 14721-KGO-980 | YH1520A | EX | SUH3/35 | Same as KGO000 |
| | XR-250RF/RH | 14721-KK1-000 | YH1530A | EX | SUH3/35 | |
| | XL.XR250R | 14721-KR6-000 | YH1531A | EX | SUH3/35 | |
| | XR-250 TORNADO | 14721-KPF-900 | YH1550A | EX | SUH35 | |
| | TRX-250 | 14721-HM8-A40 | YH1560A | IN | SUH35 | |
| | XR-350 | 14721-KFO-000 | YH1600A | EX | SUH3/35 | Same as KL3670 |
| | CB-400T | 14721-413-000 | YH1700A | EX | SUH35 | |
| | XR-500 | 14721-MG3-000 | YH1800A | EX | SUH3/35 | |
| | XR-250/XR-600 | 14721-KCZ-000 | YH1900A | EX | SUH3/35 | |
| | CB-600 | 14721-MAL-600 | YH1910A | EX | SUH3 | |
 |
Top of page |
|
ENGINE VALVE for YAMAHA(MOTORCYCLE) PRODUCT LINE-UP |
|
MODEL | OEM | CODE No. | TYPE | MATERIAL | REMARKS |
| | T-50 | 22F-12111-01 | YY0010A | IN | SUH3 | |
| | MATE-80 | 22K-12111-01 | YY0100A | IN | SUH3 | |
| | T90/CRYPTON | 4GL-12111-00 | YY0110A | IN | SUH3 | 4ST-E2111-00 |
| | SPARK-110 | 5TN-E2111-00 | YY0120A | IN | SUH3 | Carbon Cutter |
| | EGO | 5LW-E2111-00 | YY0200A | IN | SUH3 | |
| | 135LC | 5YP-E2111-00 | YY0250A | IN | SUH3 | |
| | XT/BW-200 | 5HO-12111-00 | YY0300A | IN | SUH3 | |
| | XT-125 | 1HX-12111-00 | YY0310A | IN | SUH3 | |
| | SR-125 | 5NO-12111-00 | YY0320A | IN | SUH3 | |
| | YBR-125 | 5AP-12111-01 | YY0330A | IN | SUH3/35 | 50M-12111-00 |
| | XT-250 | 3Y1-12111-00 | YY0500A | IN | SUH3 | |
| | XT-250T | 30X-12111-00 | YY0501A | IN | SUH3 | Same as 51Y |
| | XV-535 | 22U-12111-00 | YY0900A | IN | SUH3 | |
| | T-50 | 22F-12121-01 | YY1010A | EX | SUH3 | |
| | MATE-80 | 22K-12121-01 | YY1100A | EX | SUH3 | |
| | T90/CRYPTON | 4ST-12121-00 | YY1110A | EX | SUH3/35 | 4ST-E-2121-00 |
| | SPARK-110 | 5TN-E2121-00 | YY1120A | EX | SUH3 | Carbon Cutter |
| | EGO | 5LW-E2121-00 | YY1200A | EX | SUH35 | |
| | 135LC | 5YP-E2121-00 | YY1250A | EX | SUH35 | |
| | XT/BW-200 | 5HO-12121-00 | YY1300A | EX | SUH3/35 | |
| | XT-125 | 1HX-12121-00 | YY1310A | EX | SUH3 | |
| | SR-125 | 5NO-12121-00 | YY1320A | EX | SUH3 | |
| | YBR-125 | 5HP-12121-00 | YY1330A | EX | SUH3/35 | 50M-12121-00 |
| | XT-250 | 3Y1-12121-00 | YY1500A | EX | SUH3 | |
| | XT-250T | 30X-12121-00 | YY1501A | EX | SUH3 | Same as 51Y |
| | XV-535 | 22U-12121-00 | YY1900A | EX | SUH35 | |
|
Top of page |
|
ENGINE VALVE for SUZUKI(MOTORCYCLE) PRODUCT LINE-UP |
|
MODEL | OEM | CODE No. | TYPE | MATERIAL | REMARKS |
| | FB-50 | 12911-09401 | YS0010A | IN | SUH3 | |
| | FB-80 | 12911-02A00 | YS0100A | IN | SUH3 | |
| | FB-100 | 12911-30A11 | YS0150A | IN | SUH3 | |
| | FD-110 | 12911-30D00 | YS0250A | IN | SUH3 | |
| | GS-125 | 12911-05211 | YS0300A | IN | SUH3 | |
| | VS-125 | 12911-20E00 | YS0301A | IN | SUH3 | |
| | F-125X | 12911-16E00 | YS0302A | IN | SUH3 | |
| | YES-125 | 12911-12F50 | YS0310A | IN | SUH3 | |
| | INTRUDER | 12911-24400 | YS0320A | IN | SUH3 | |
| | DR-200SE | 12911-42A00 | YS0400A | IN | SUH3 | |
| | DR-250 | 12911-15D01 | YS0500A | IN | SUH3 | |
| | DR-350 | 12911-14D01 | YS0600A | IN | SUH3 | |
| | FB-50 | 12912-09401 | YS1010A | EX | SUH3 | |
| | FB-80 | 12912-02A00 | YS1100A | EX | SUH3 | |
| | FB-100 | 12912-30A11 | YS1150A | EX | SUH3 | |
| | FD-110 | 12912-30D00 | YS1250A | EX | SUH3/35 | |
| | GS-125 | 12912-05211 | YS1300A | EX | SUH3 | |
| | VS-125 | 12912-20E00 | YS1301A | EX | SUH35 | |
| | F-125X | 12912-16E00 | YS1302A | EX | SUH3/35 | |
| | YES-125 | 12912-12F50 | YS1310A | EX | SUH35 | |
| | INTRUDER | 12912-24400 | YS1320A | EX | SUH35 | |
| | DR-200SE | 12912-42A00 | YS1400A | EX | SUH3 | |
| | DR-250 | 12912-15D01 | YS1500A | EX | SUH3 | |
| | DR-350 | 12912-14D01 | YS1600A | EX | SUH3 | |
|
Top of page |
|
ENGINE VALVE for KAWASAKI(MOTORCYCLE) PRODUCT LINE-UP |
|
MODEL | OEM | CODE No. | TYPE | MATERIAL | REMARKS |
| | AN-80/JOY | 12004-1060 | YK0050A | IN | SUH3 | Same as 12004-1014 |
| | AX-1/AN-90/BR-100 | 12004-1055 | YK0100A | IN | SUH3 | Same as 12004-1161 |
| | KLR-250/EN-500/EN400-B2 | 12004-1077 | YK0300A | IN | SUH3 | Same as 12004-1119 |
| | ZX-250 | 12004-1105 | YK0310A | IN | SUH3 | Carbon cutter |
| | ZZR-250/EX250H7F | 12004-1074 | YK0320A | IN | SUH3 | |
| | VN-800 | 12004-1139 | YK0800A | IN | SUH3 | |
| | AN-80/JOY | 12005-1056 | YK1050A | EX | SUH3 | Same as 12005-1012 |
| | AX-1/AN-90/BR-100 | 12005-1055 | YK1100A | EX | SUH3 | Same as 12005-1348 |
| | KLR-250/EN-500/EN400-B2 | 12005-1052 | YK1300A | EX | SUH3/35 | |
| | ZX-250 | 12005-1167 | YK1310A | EX | SUH35 | Carbon cutter |
| | ZZR-250EX250H7F | 12005-1091 | YK1320A | EX | SUH35 | |
| | VN-800C8F | 12005-1225 | YK1800A | EX | SUH35 | |
|
Top of page |
 |
