PISTON KIT for SUZUKI AS0580X

PISTON KIT / MOTORCYCLE*
*
バイクパーツ - EN-125
PISTONKIT ZOOM

バイクパーツ - EN-125
PISTONKIT ZOOM

バイクパーツ - EN-125
PISTONKIT ZOOM
*

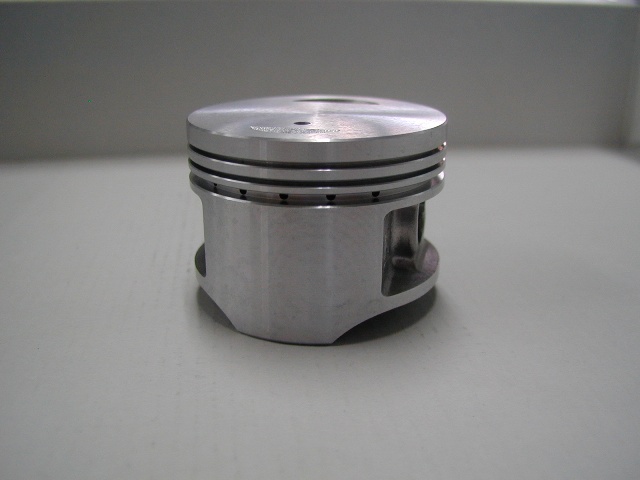

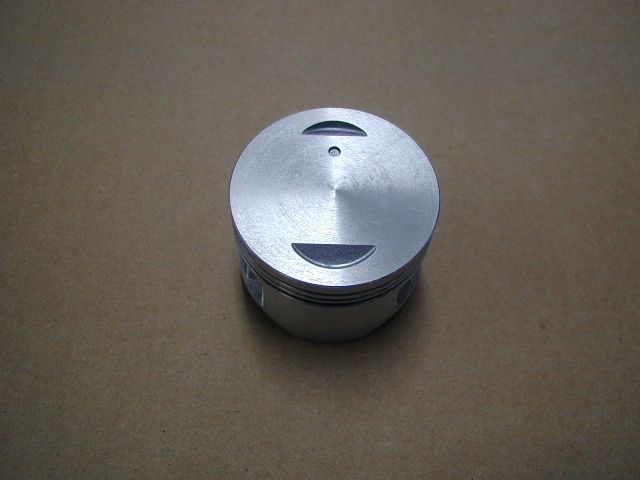

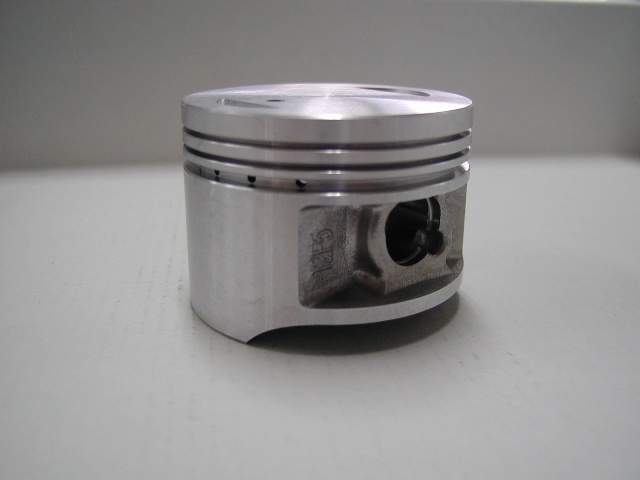

PISTON KIT

Representative model of Motorcycle in our list are based on data both of ours and our agency, dealers in each country.

*
PISTON KIT
MODEL
 EN-125
GN-125H
OEM No. 12F50
CODE No. AS0580X
BORE(mm) ：Ａ 57
LENGTH(mm) ：Ｂ 41.20
PIN DIA (mm) ：C 14
COMPRESSION HIGHT① (mm)：D 21.20
COMPRESSION HIGHT② (mm)：E 21.20
PIN LENGTH (mm) ：Ｆ 41.5
PLATING
STROKE 4
PISTON　CODE No. PS0760X
*
*
*
Payment/ Delivery Fee & Delivery/ Returns Policy/
PL Policy/ Use of Terms/
*
price：¥9,300(USD) SIZE：




*
