*HOME > PRODUCTS > MOTORCYCLE > CONNECTING ROD KIT
*

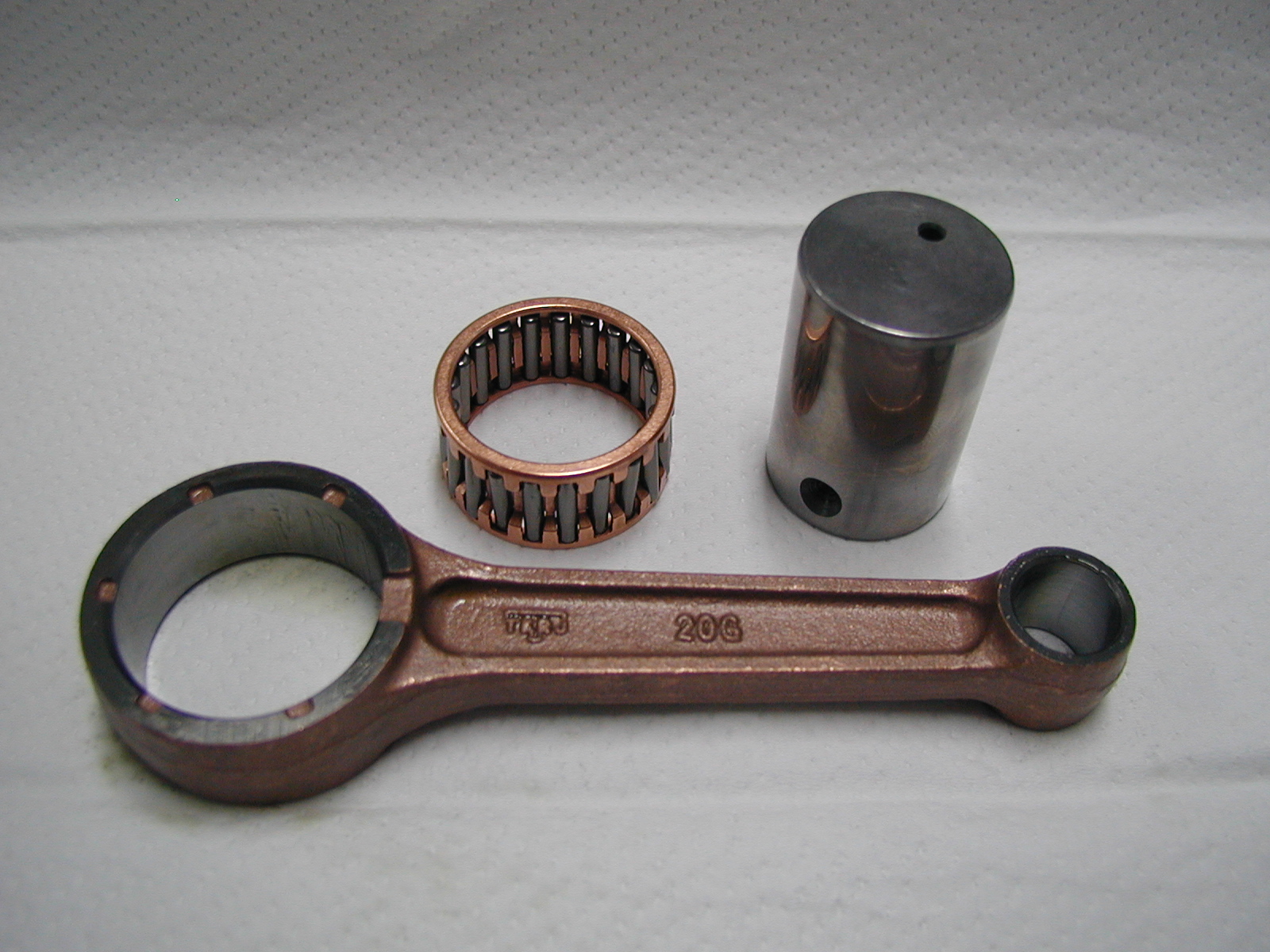

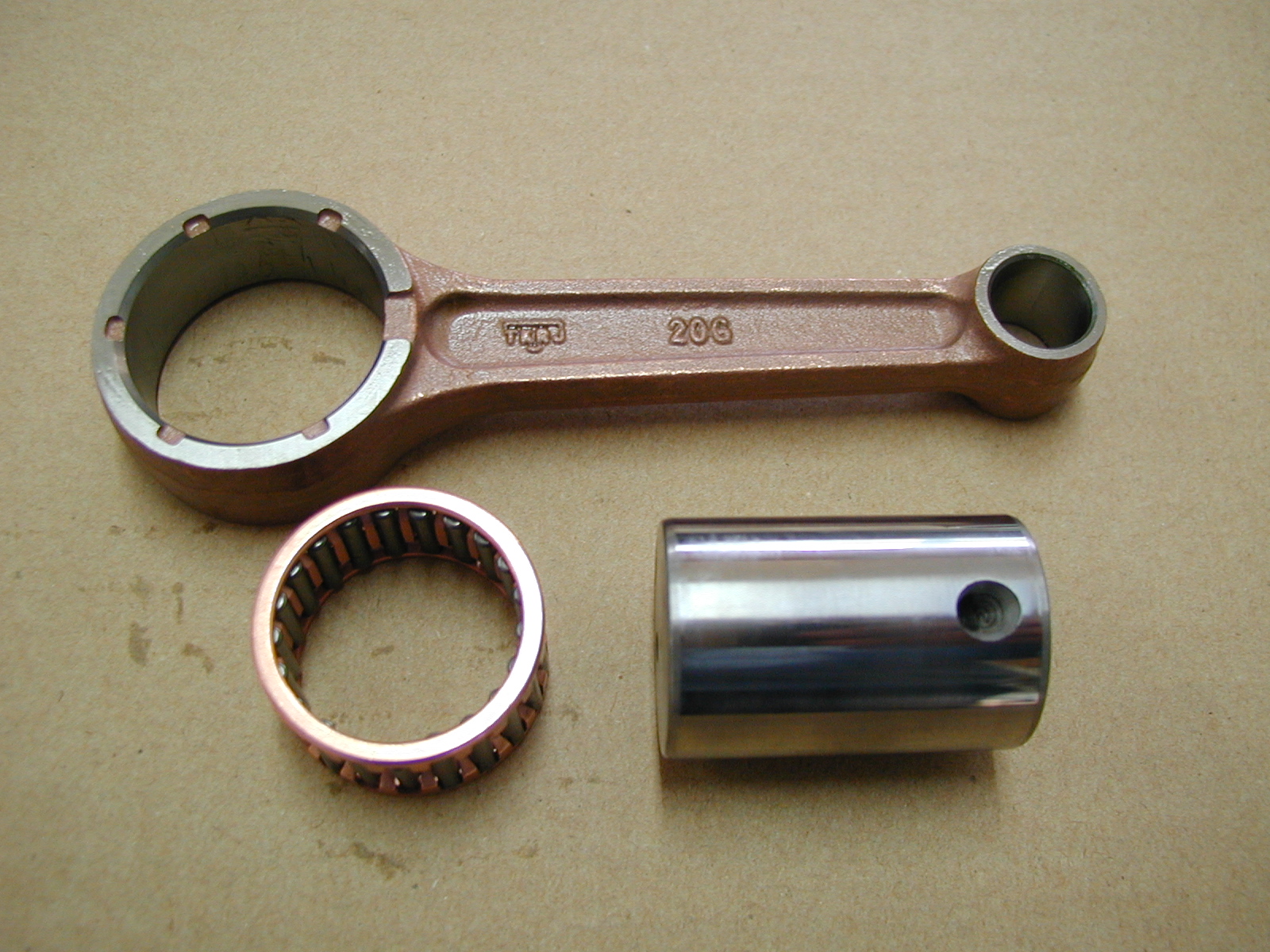

CONNECTING ROD KIT for SUZUKI BS0355A

CONNECTING ROD KIT / MOTORCYCLE*
*
バイクパーツ - FD125XS
CONNECTINGRODKIT ZOOM

バイクパーツ - FD125XS
CONNECTINGRODKIT ZOOM

*
CONNECTING ROD KIT

Representative model of Motorcycle in our list are based on data both of ours and our agency, dealers in each country.

*
CONNECTING ROD KIT
MODEL
 FD125XS
SHOGUN
OEM No. 20G00
CODE No. BS0355A
B.E.BEARING DIA (mm)：Ａ 34.0
S.E.BEARING DIA (mm)：Ｂ 14.0
B.E.& S.E. PITCH (mm)：Ｃ 102.7
B.E.THICKNESS (mm)：Ｄ 16.8
S.E.THICKNESS （mm)：Ｅ 16.8
CRANK PIN DIA (mm)：Ｆ 28.0
CRANK PIN LENGTH (mm)：Ｇ 41.8
STROKE 4
CON,ROD CODE No. CS0286X
*
*
*





*
