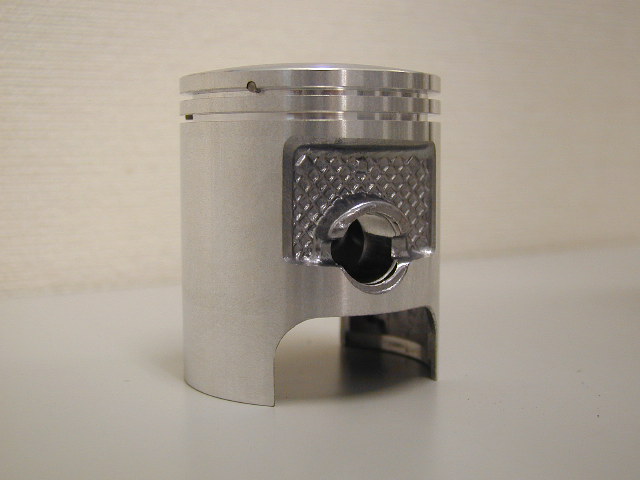

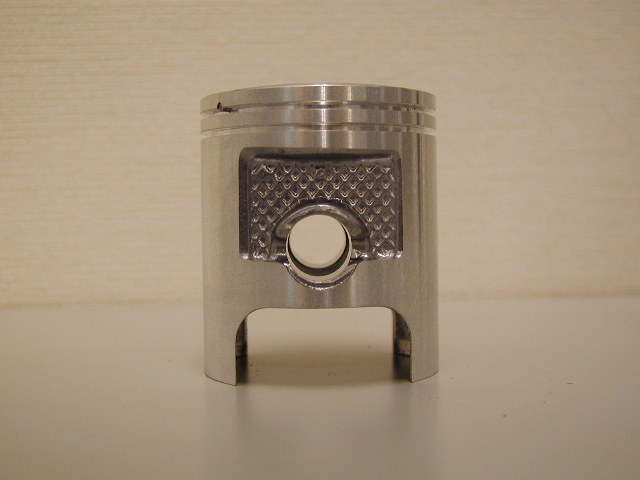

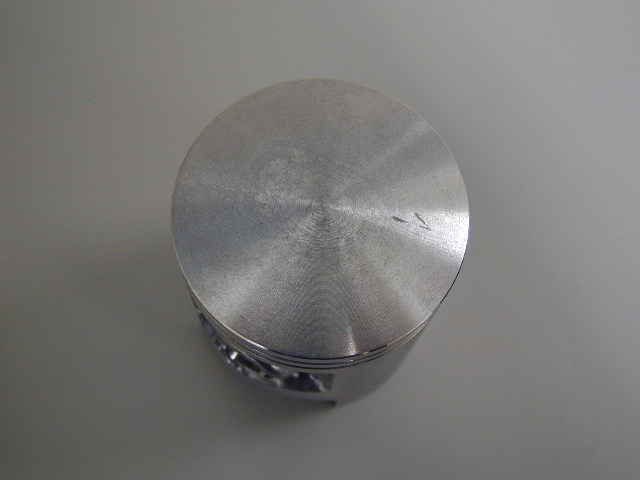

PISTON KIT for KAWASAKI AK0390X

PISTON KIT / MOTORCYCLE

MODEL KE-125A/KH-125A OEM No. -1091 CODE No. AK0390X BORE(mm) ：Ａ 56 LENGTH(mm) ：Ｂ 67.00 PIN DIA (mm) ：C 14 COMPRESSION HIGHT① (mm)：D 37.00 COMPRESSION HIGHT② (mm)：E 34.00 PIN LENGTH (mm) ：Ｆ 14x47.5 PLATING STROKE 2 PISTON　CODE No. PK0340X
