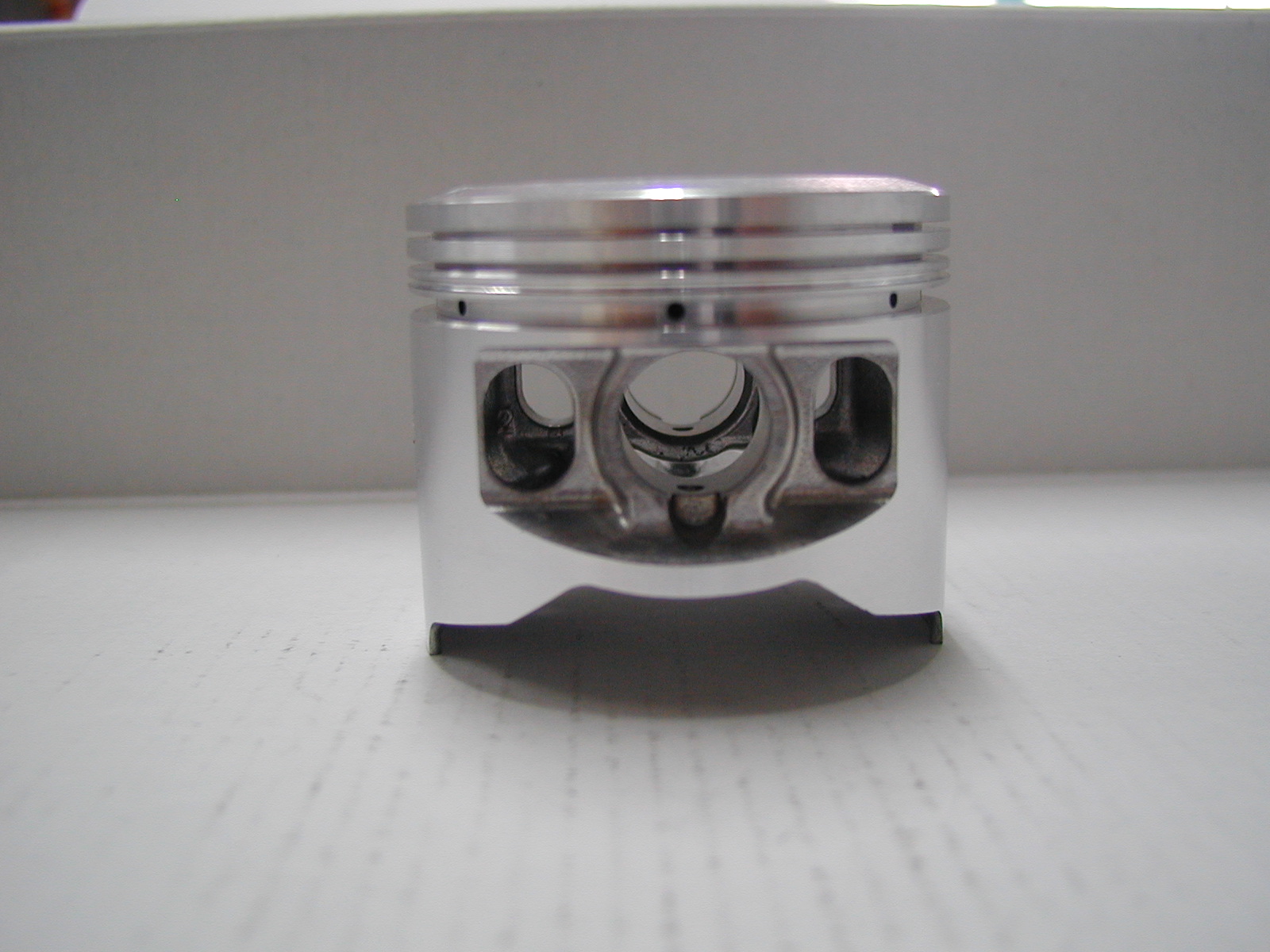

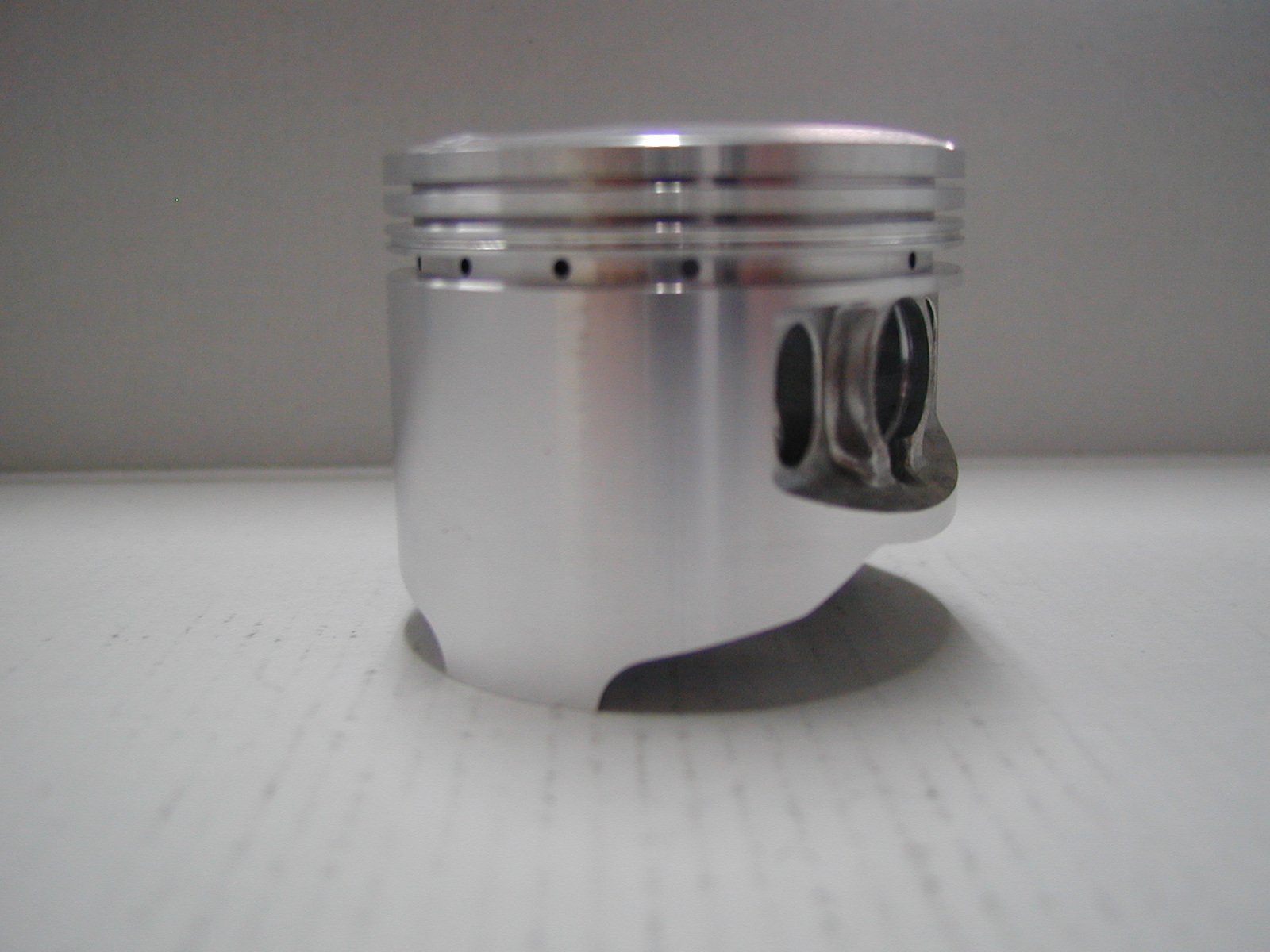

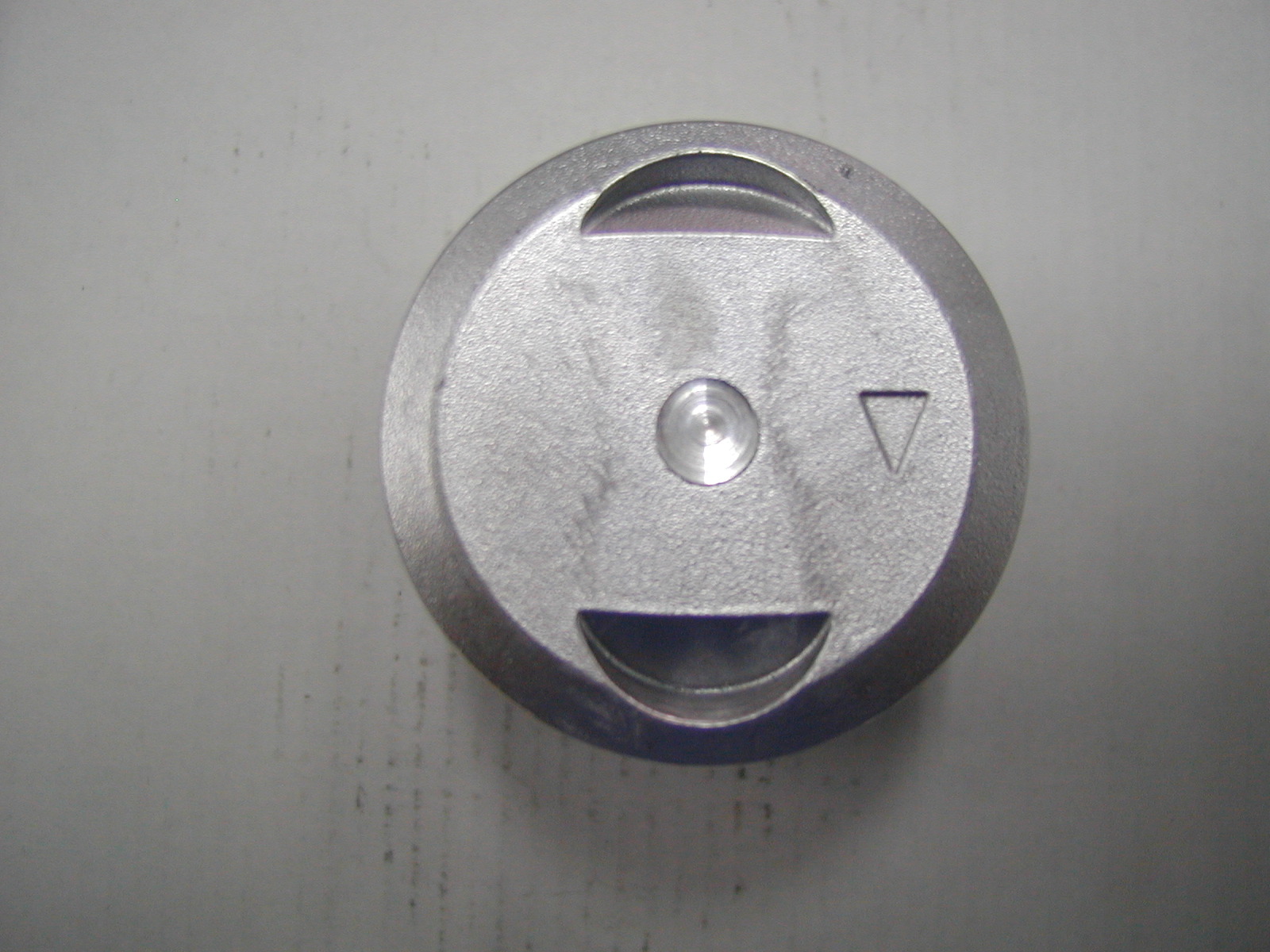

PISTON KIT for KAWASAKI AK0110X

PISTON KIT / MOTORCYCLE

MODEL KAZE-R OEM No. -1420 CODE No. AK0110X BORE(mm) ：Ａ 53 LENGTH(mm) ：Ｂ 44.80 PIN DIA (mm) ：C 13.0 COMPRESSION HIGHT① (mm)：D 19.50 COMPRESSION HIGHT② (mm)：E 19.40 PIN LENGTH (mm) ：Ｆ 13.0 X 38.5 PLATING STROKE 4 PISTON　CODE No. PK0180X
