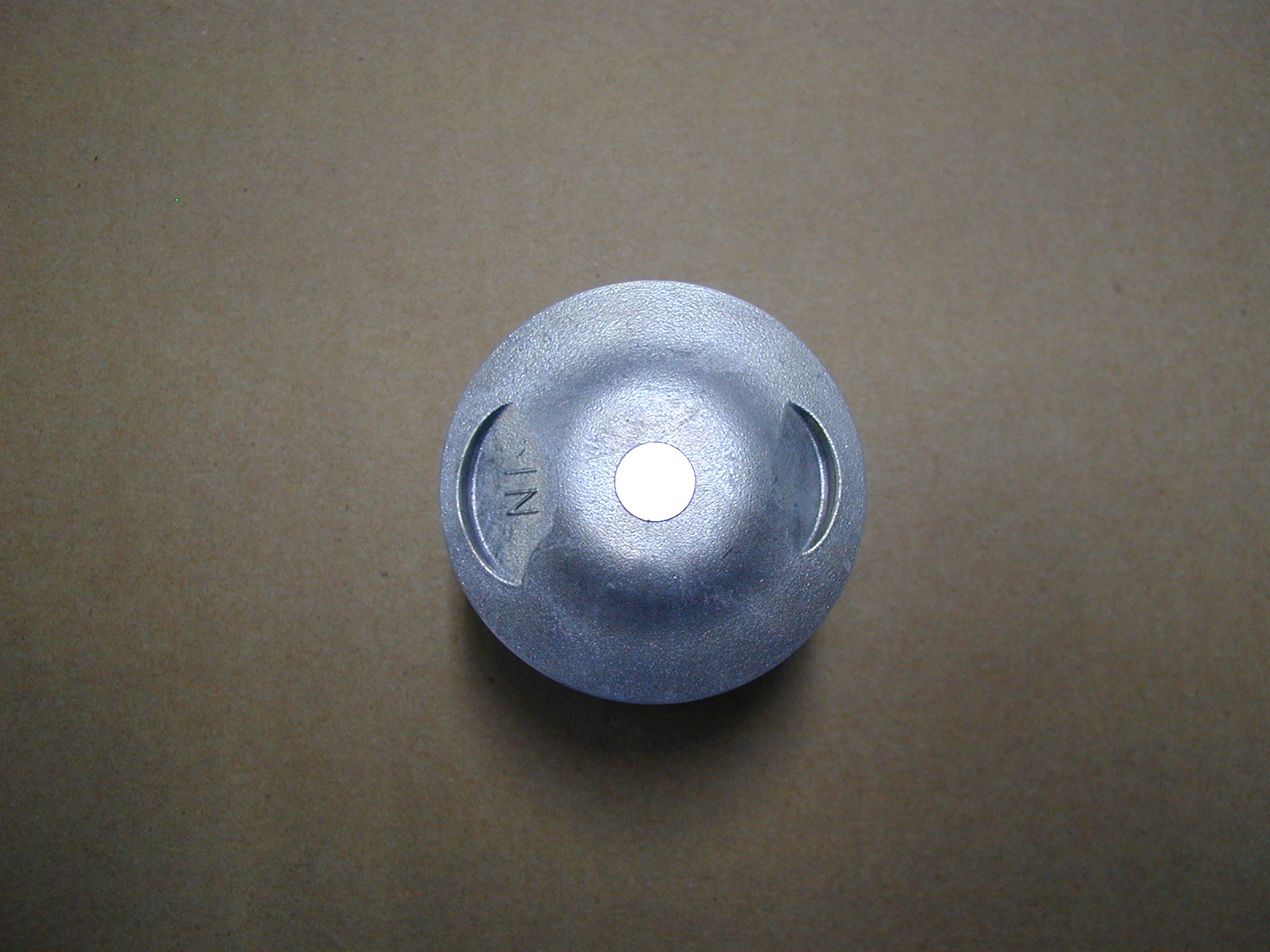

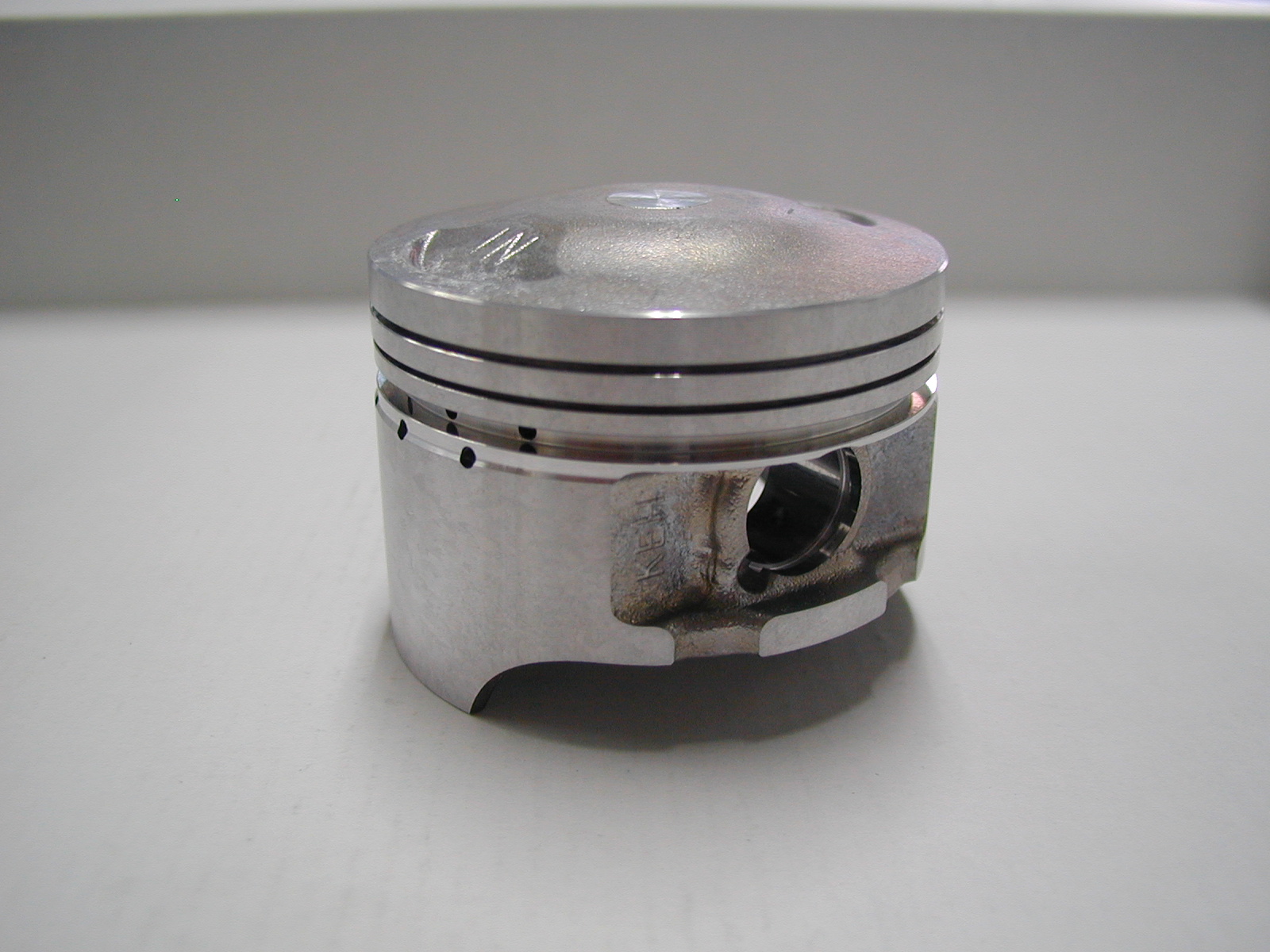

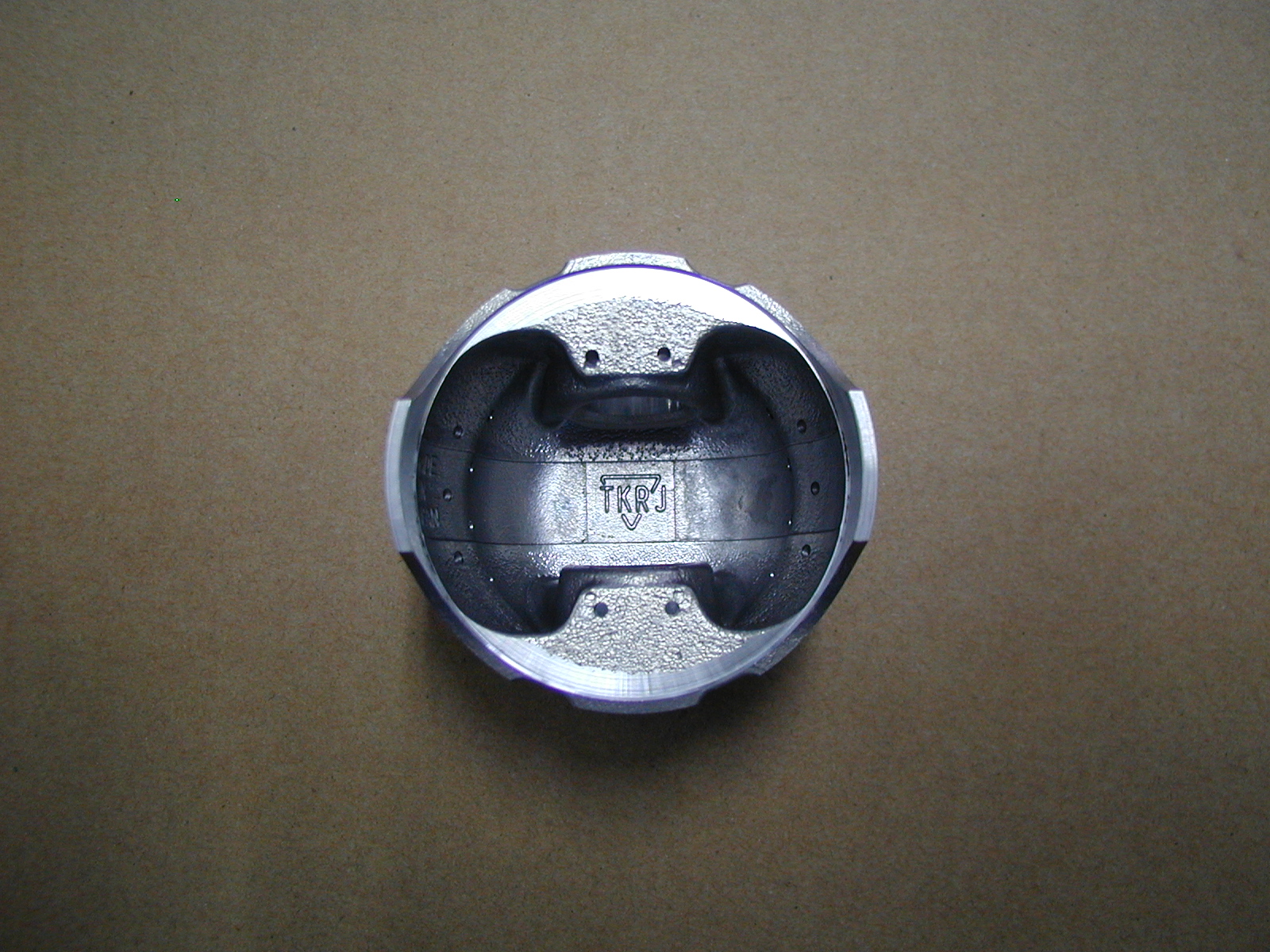

PISTON KIT for HONDA AH1090X

PISTON KIT / MOTORCYCLE

MODEL MEGA PLO OEM No. -KEH-660 CODE No. AH1090X BORE(mm) ：Ａ 63.5 LENGTH(mm) ：Ｂ 49.50 PIN DIA (mm) ：C 15.0 COMPRESSION HIGHT① (mm)：D 26.50 COMPRESSION HIGHT② (mm)：E 22.0 PIN LENGTH (mm) ：Ｆ 15 X 48.0 PLATING STROKE 4 PISTON　CODE No. PH1070X
