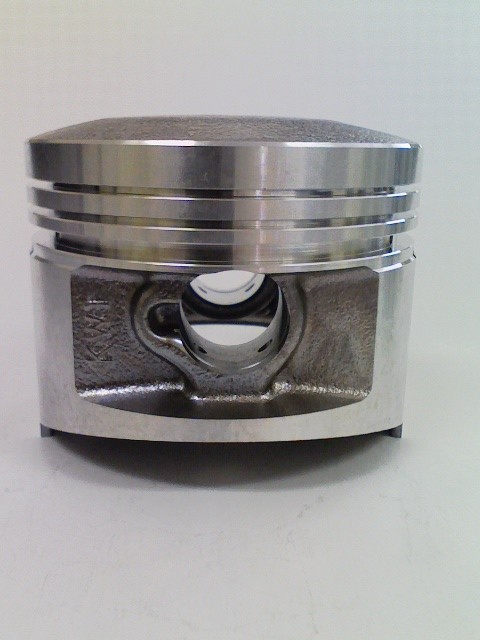

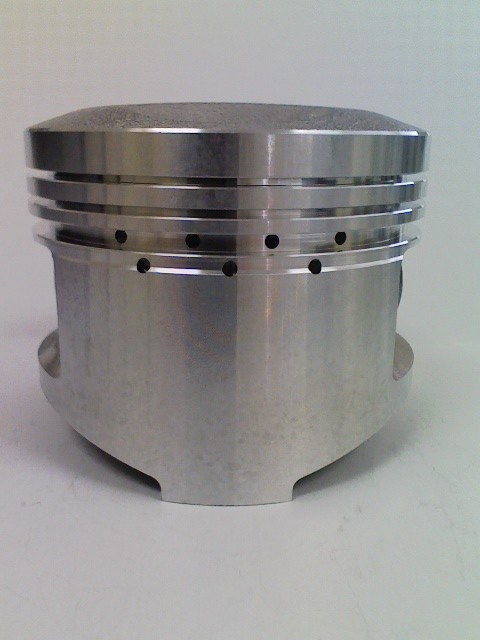

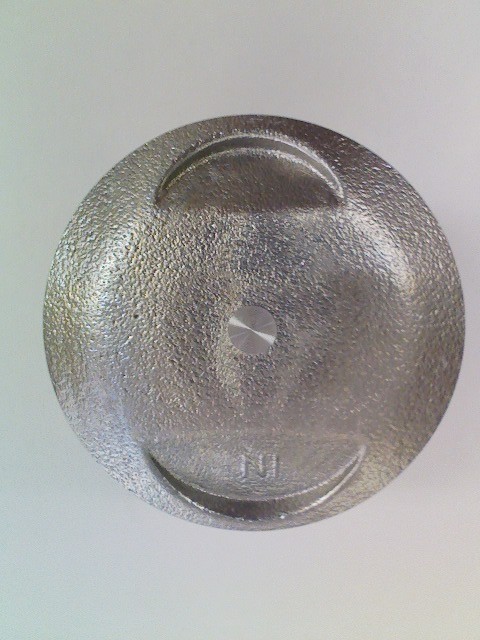

PISTON KIT for HONDA AH0920X

PISTON KIT / MOTORCYCLE

MODEL NX-150 OEM No. -KW1-000 CODE No. AH0920X BORE(mm) ：Ａ 62.5 LENGTH(mm) ：Ｂ 51.40 PIN DIA (mm) ：C 15 COMPRESSION HIGHT① (mm)：D 26.40 COMPRESSION HIGHT② (mm)：E 22.60 PIN LENGTH (mm) ：Ｆ 15x48 PLATING STROKE 4 PISTON　CODE No. PH0920X
