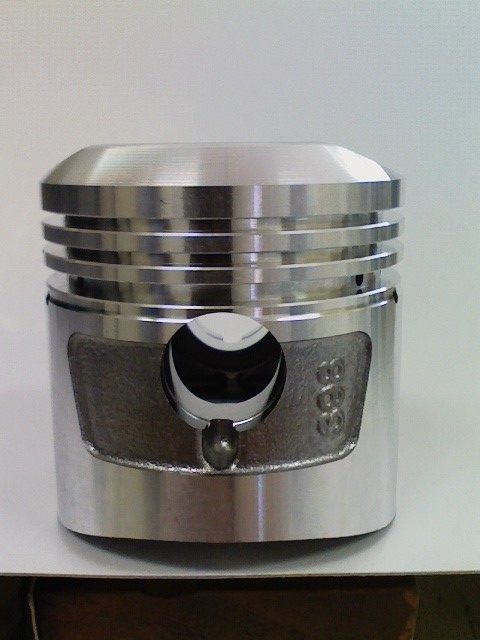

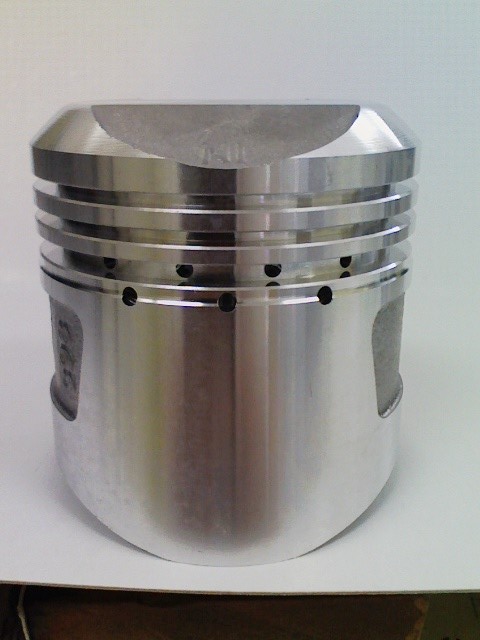

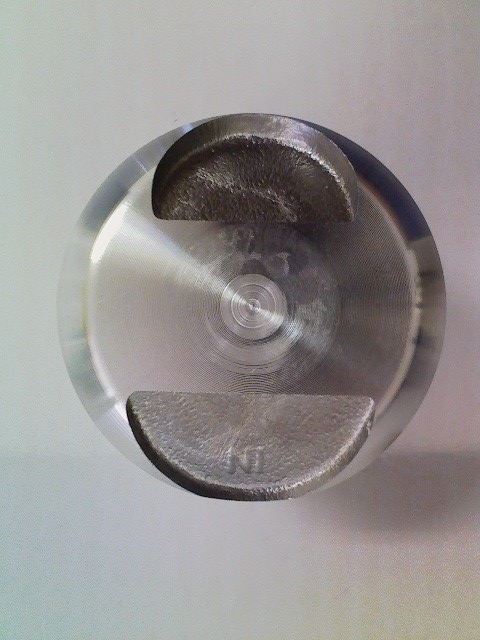

PISTON KIT for HONDA AH0550X

PISTON KIT / MOTORCYCLE

MODEL CG-110 OEM No. -398-000 CODE No. AH0550X BORE(mm) ：Ａ 52 LENGTH(mm) ：Ｂ 53.35 PIN DIA (mm) ：C 15 COMPRESSION HIGHT① (mm)：D 26.35 COMPRESSION HIGHT② (mm)：E 21.50 PIN LENGTH (mm) ：Ｆ 15x41.5 PLATING STROKE 4 PISTON　CODE No. PH0650X
