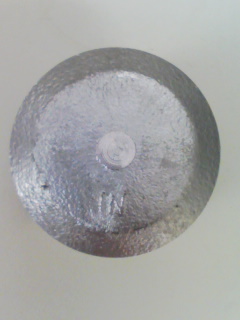

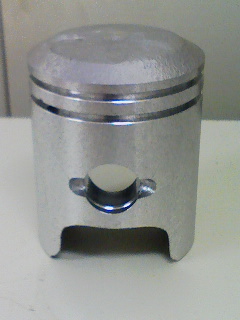

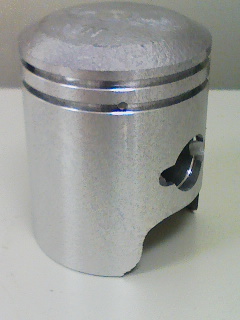

PISTON KIT for HONDA AH0070X

PISTON KIT / MOTORCYCLE

MODEL MB-50/MT-50 OEM No. -166-000 CODE No. AH0070X BORE(mm) ：Ａ 39 LENGTH(mm) ：Ｂ 50.30 PIN DIA (mm) ：C 12 COMPRESSION HIGHT① (mm)：D 27.30 COMPRESSION HIGHT② (mm)：E 23.50 PIN LENGTH (mm) ：Ｆ 12x31.5 PLATING STROKE 2 PISTON　CODE No. PH0060X
