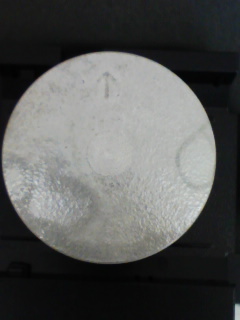

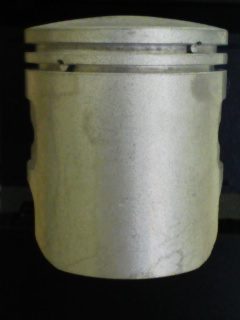

PISTON KIT for HONDA AH0050X

PISTON KIT / MOTORCYCLE

MODEL ELITE-50/NE-50/SA-50M OEM No. -GS7-000 CODE No. AH0050X BORE(mm) ：Ａ 41 LENGTH(mm) ：Ｂ 47.60 PIN DIA (mm) ：C 10 COMPRESSION HIGHT① (mm)：D 22.60 COMPRESSION HIGHT② (mm)：E 20.00 PIN LENGTH (mm) ：Ｆ 10x32.5 PLATING O STROKE 2 PISTON　CODE No. PH0040X
